TECHNICAL FEATURES

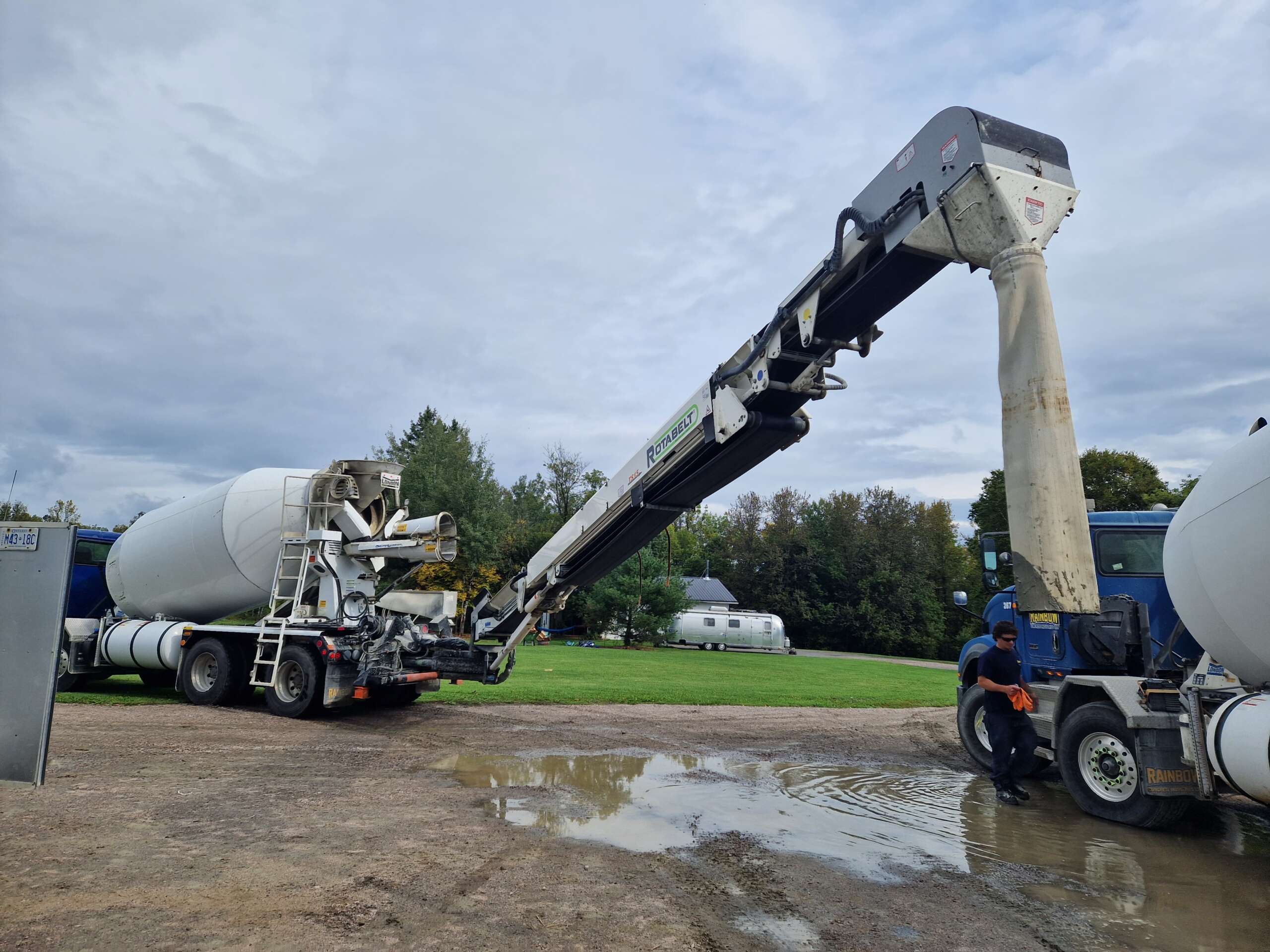

  • Conveying distance from 32 up to 53 ft
  • Telescope – 2 nd section 14 ft
  • Belt width 14.17 in
  • Max. discharge rate 91 cu yds / h
  • Rotation 310°
  • Weight 5820 lbs
  • Steel structure
  • Stabilizers

AN INCREASED FLEXIBILITY

  • One telescope of 14 ft on the second section
  • Reach of 53 ft
  • Can be fit on new or existing truck
  • Automatic, Manual or M-Drive transmissions

A LOT OF APPLICATIONS

  • Various applications (foundations, slabs …)
  • Place different types of materials (sand, gravel, concrete …)

A DELIVERY QUALITY

  • Proportional remote control radio for greater precision
  • Sliding system preventing segregation and compatible with every kind of concrete plasticity
  • Intuitive Controls system (stabilizers controls from remote also)

ADDITIONAL OPTIONS

  • High pressure washer
  • Demountable systeme
