VERY VERSATILE -> The only conveyor with NO BLIND SPOT !

  • Telescop of 13 ft on 2nd section
  • Patented rotating chute 360° non-stop ( Patent number # 06/02893)
  • 3D extension ideal for shuttered walls
  •  Chute extension to gain 3ft
  • 310° rotation delivery around the truck, but also aroud corners with the rotating chute …

A VALUE FOR MONEY

  • A lot of serial equipement (3D extension, chute extension, proportionnal hydraulic distributor…)
  • Can be mounted on new or existing trucks
  • Automatic, Manual or M Drive transmissions

MAXIMUM PLACING MADE SIMPLE

  • Wireless proportional remote control radio for greater precision
  • Sliding system preventing concrete segregation and compatible with every kind of concrete plasticity
  • Hood with quick opening for cleaning

TECHNICAL FEATURES

  • Conveying distance from 20.6 up to 54 ft
  • Belt width 14.17 in
  • Max. discharge rate 92 cu yds / h
  • Rotation angle 310°
  • Max. discharge height 23 ft
  • Weight (including stabilizers) 6,160 lbs
  • Steel structure Stabilizers

Additional Options

  • High pressure washer
  • Full-proportional controls for greater precison

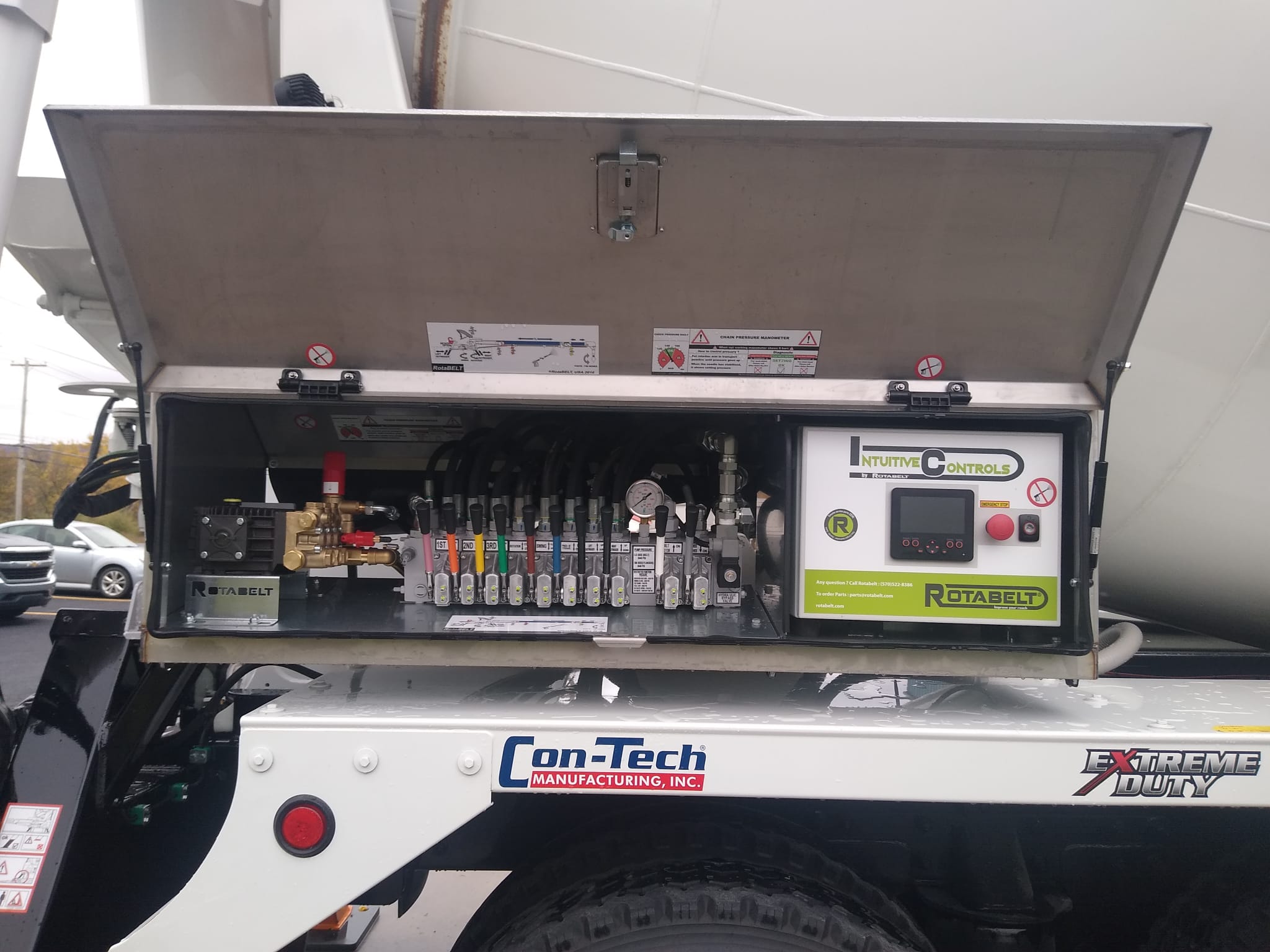

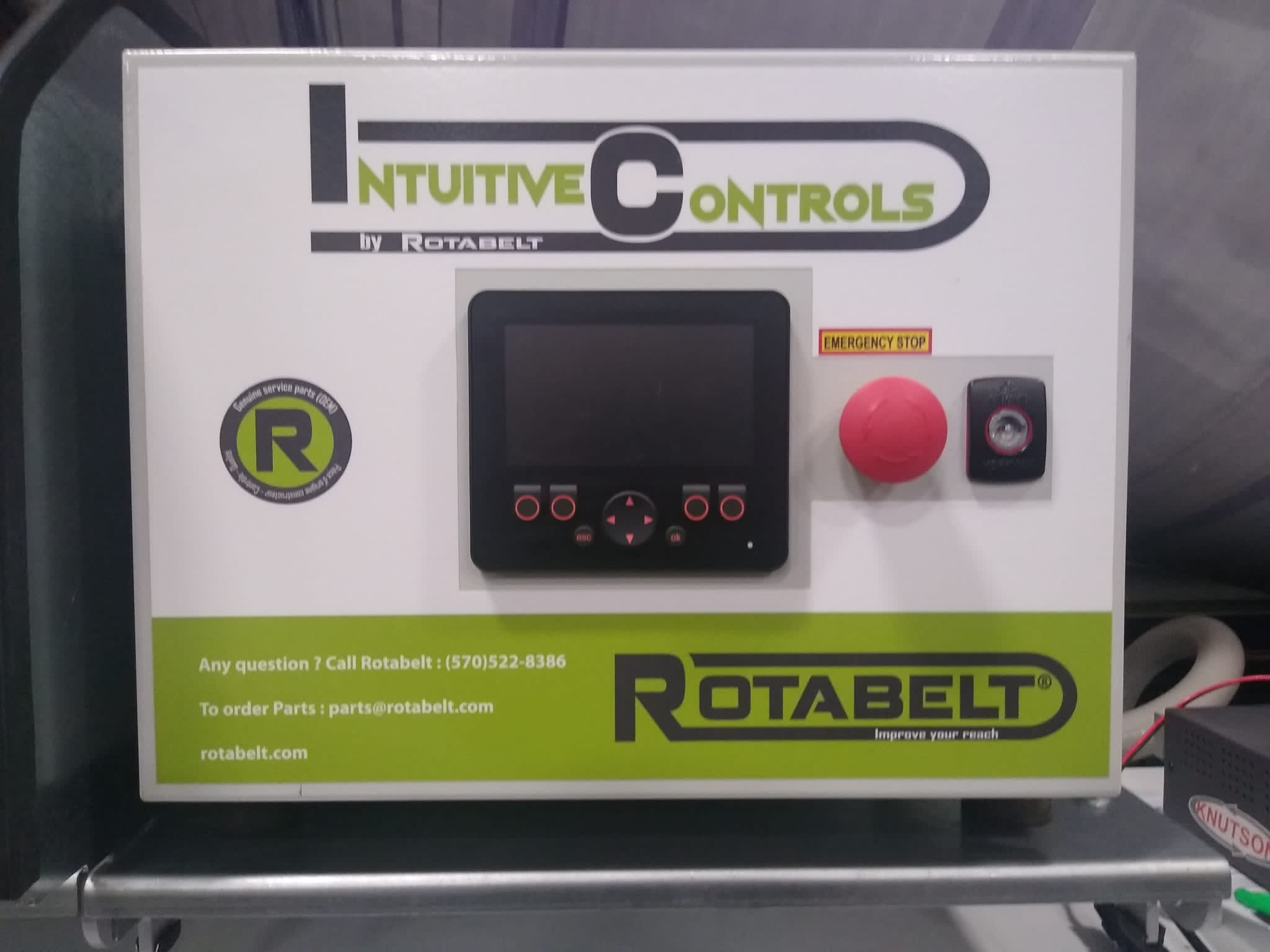

  • Intuitive Controls included
